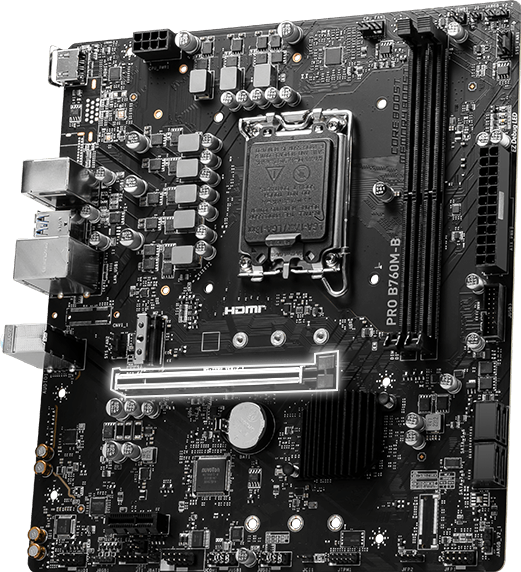

MSI PRO B760M-B DDR5 Micro-ATX Motherboard
The MSI PRO B760M‑B DDR5 Motherboard is an entry-level Micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors with the LGA1700 socket. It supports DDR5 memory, PCIe 4.0, and modern storage, making it suitable for budget gaming or office PC builds.
🔹 Key Features
-
Supports Intel Core 12th / 13th / 14th Gen CPUs
-
Intel B760 chipset
-
DDR5 RAM support up to 6400+ MHz (OC)
-
PCIe 4.0 x16 slot for graphics cards
-
1× M.2 PCIe 4.0 NVMe SSD slot
-
2.5Gb LAN network
-
HDMI 2.1 output (4K 60Hz) for CPUs with integrated graphics
-
Audio Boost with Realtek ALC897 codec
📊 Specifications
| Feature | Details |
|---|---|
| Form Factor | Micro-ATX |
| Socket | LGA1700 |
| Chipset | Intel B760 |
| CPU Support | Intel Core 12th / 13th / 14th Gen |
| Memory | 2× DDR5 DIMM |
| Max Memory | 128GB |
| Memory Speed | Up to 6400+ MHz (OC) |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe x1 |
| Storage | 1× M.2 PCIe 4.0 + 4× SATA |
| LAN | 2.5Gb Ethernet |
| Graphics Output | HDMI 2.1 |
| Audio | Realtek ALC897 7.1 HD |
✅ Good CPU Pairing
This motherboard works well with:
-
Intel Core i5‑12400F
-
Intel Core i5‑13400
-
Intel Core i5‑14400
Ideal for budget gaming PCs with GPUs like RTX 3050 / RTX 4060.
⚠️ Limitations
-
Only 2 RAM slots (less upgrade flexibility)
-
Only 1 M.2 NVMe slot
-
No built-in Wi-Fi
-
CPU overclocking not supported on B760 chipset boards.
