Description

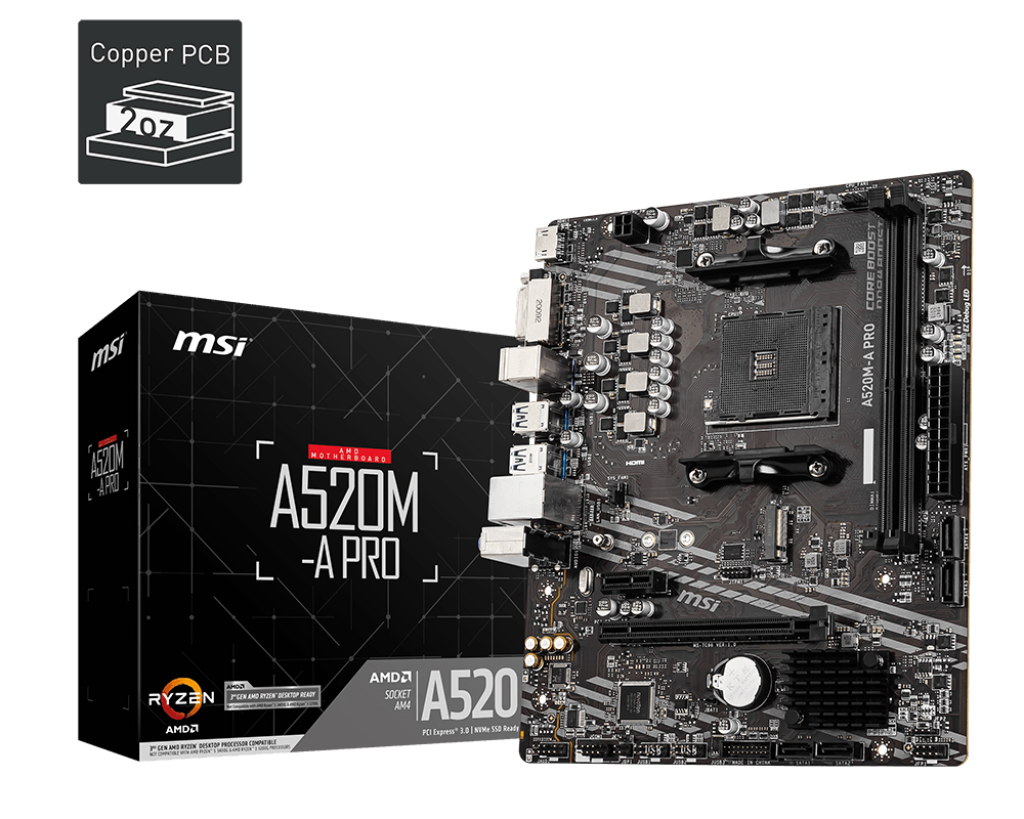

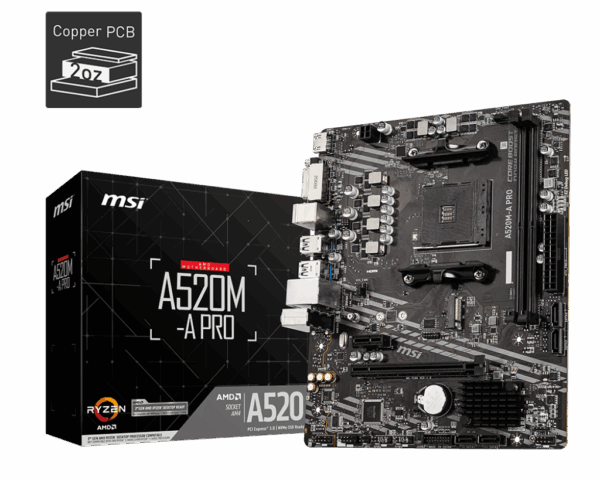

The MSI A520M-A PRO is a reliable and budget-friendly Micro-ATX motherboard designed for AMD Ryzen processors. It offers essential features for home and office systems, including support for high-speed DDR4 memory, NVMe SSDs, and multiple display outputs. With its robust build quality and efficient design, it’s an excellent choice for users seeking stability and performance without unnecessary extras.
Key Features
-
Supports AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series processors
-
Dual-channel DDR4 memory support up to 64GB
-
Turbo M.2 slot for NVMe SSDs
-
Core Boost technology for optimized power delivery
-
Audio Boost for enhanced sound quality
-
HDMI and DVI-D outputs for multi-monitor setups
-
Gigabit LAN with Realtek RTL8111H controller
-
User-friendly BIOS with Click BIOS 5
| MSI A520M-A PRO Micro-ATX Motherboard – Specifications | |
|---|---|
| Brand | MSI |
| Chipset | AMD A520 |
| Color | Black PCB with grey accents |
| Connectivity | Realtek RTL8111H Gigabit LAN, USB 3.2 Gen 1, USB 2.0, HDMI, DVI-D |
| Form Factor | Micro-ATX |
| CPU Support | AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series processors |
| Socket Type | AM4 |
| Memory Support | 2 x DDR4 DIMM sockets, up to 64GB, Dual Channel, up to 4600 MHz (OC) |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 (PCIe 3.0 x4 / SATA), 4 x SATA 6Gb/s |
| Display Outputs | 1 x HDMI 1.4, 1 x DVI-D |
| Audio | Realtek ALC892 Codec, 7.1-Channel HD Audio |
| LAN | Realtek RTL8111H Gigabit LAN |
| Rear USB Ports | 4 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Internal Connectors | 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers |
| Cooling | 1 x CPU Fan Header, 1 x System Fan Header |
| BIOS | Click BIOS 5 |
| OS Support | Windows 10/11 64-bit |
