Description

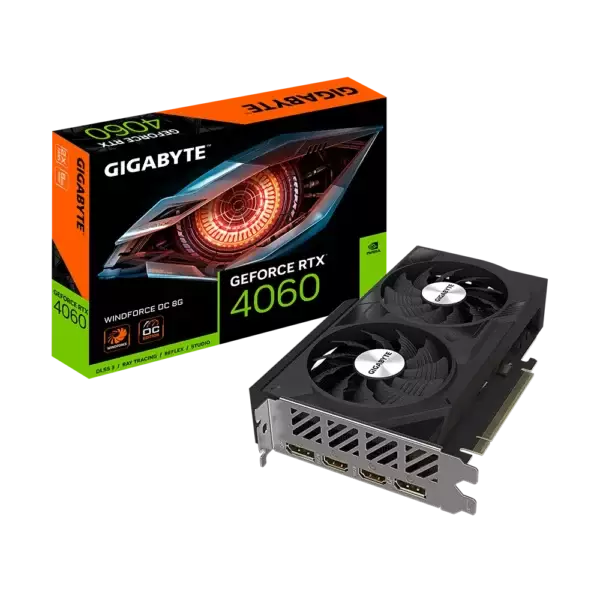

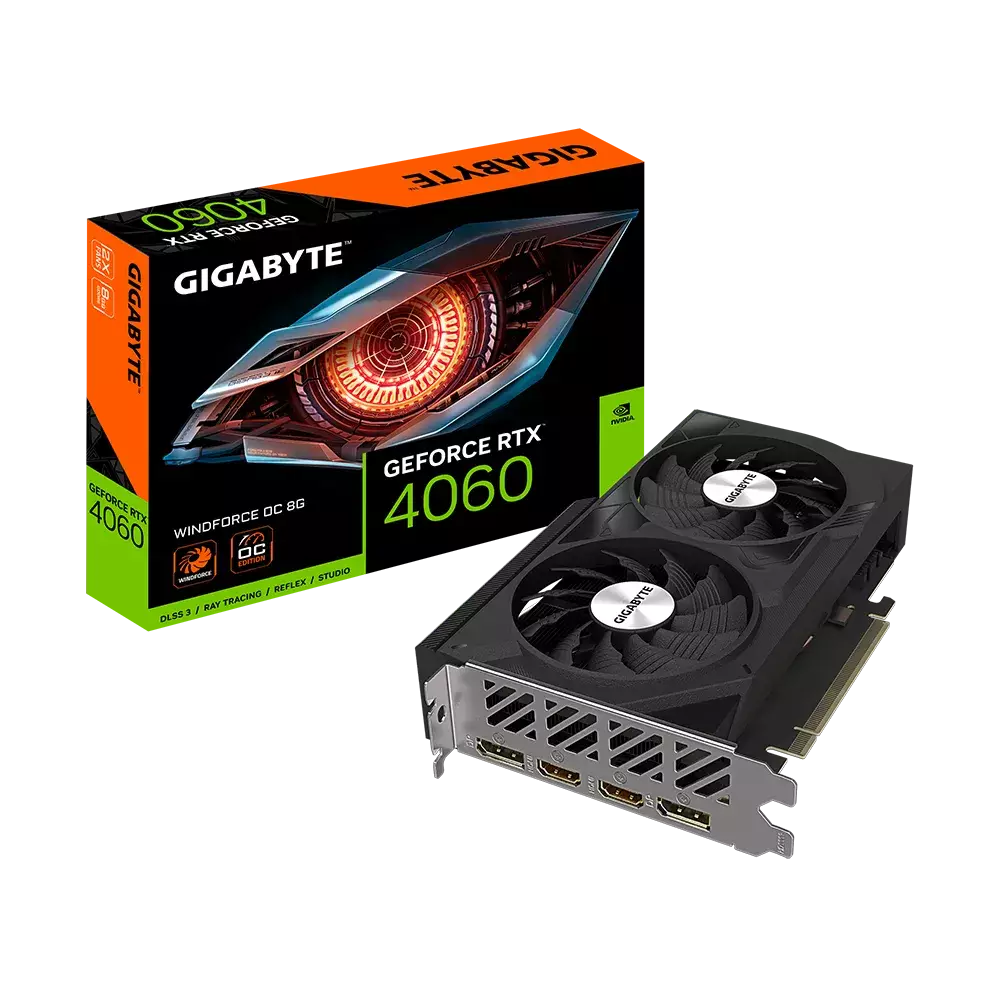

The Gigabyte GeForce RTX 4060 WINDFORCE OC 8G is a high-performance graphics card designed for gamers and creators seeking exceptional 1080p and 1440p gaming experiences. Built on NVIDIA’s Ada Lovelace architecture, it features 3072 CUDA cores, 8GB of GDDR6 memory, and a 128-bit memory interface. The card boasts a core clock of 2475 MHz, offering enhanced performance over the reference model. Its compact design ensures compatibility with a wide range of PC builds.
Key Features
-
NVIDIA DLSS 3 Support: Enhances frame rates and image quality using AI-driven upscaling.
-
Ray Tracing Cores: Experience realistic lighting and shadows with 3rd Generation RT Cores.
-
WINDFORCE Cooling System: Dual 80mm alternate spinning fans and a composite copper heat pipe ensure efficient heat dissipation.
-
Compact Form Factor: Measures 192 x 120 x 41 mm, fitting in most mid-sized cases.
-
Power Connector: Requires a single 8-pin connector, simplifying power requirements.
| Gigabyte GeForce RTX 4060 Specifications | |
|---|---|
| Brand | Gigabyte |
| Model | GV-N4060WF2OC-8GD |
| GPU Architecture | Ada Lovelace |
| CUDA Cores | 3072 |
| Base Clock | 1830 MHz |
| Boost Clock | 2475 MHz |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 272 GB/s |
| Bus Interface | PCIe 4.0 x8 |
| Outputs | 2x HDMI 2.1a, 2x DisplayPort 1.4a |
| Maximum Resolution | 7680 x 4320 (8K) |
| Cooling System | WINDFORCE 2X with alternate spinning fans |
| Power Connector | 1x 8-pin |
| TDP | 115W |
| Recommended PSU | 450W or higher |
| Form Factor | Dual-slot, Full-height |
| Dimensions (L x W x H) | 192 x 120 x 41 mm |
