Description

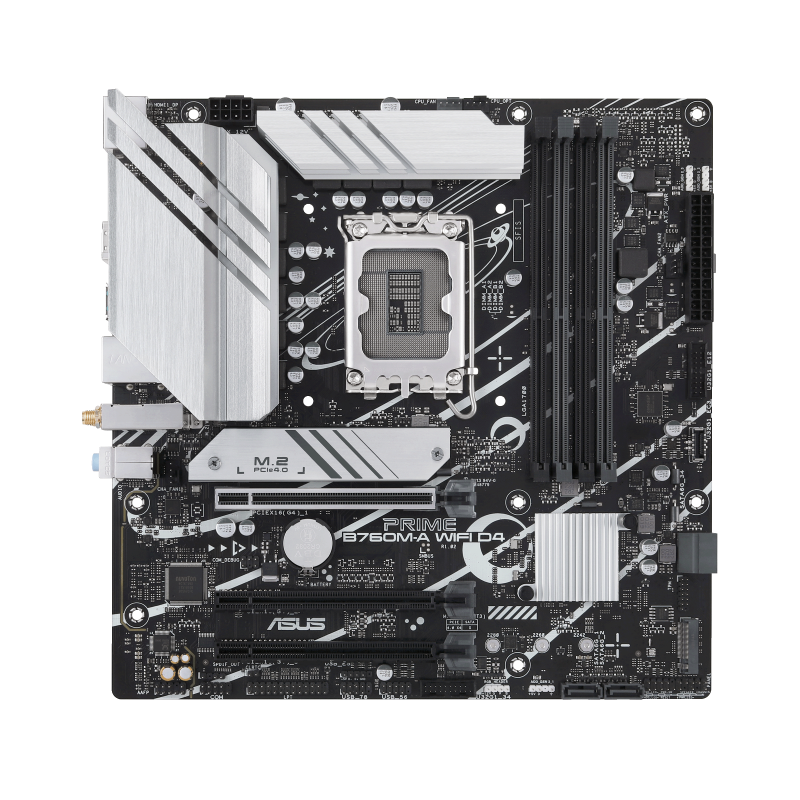

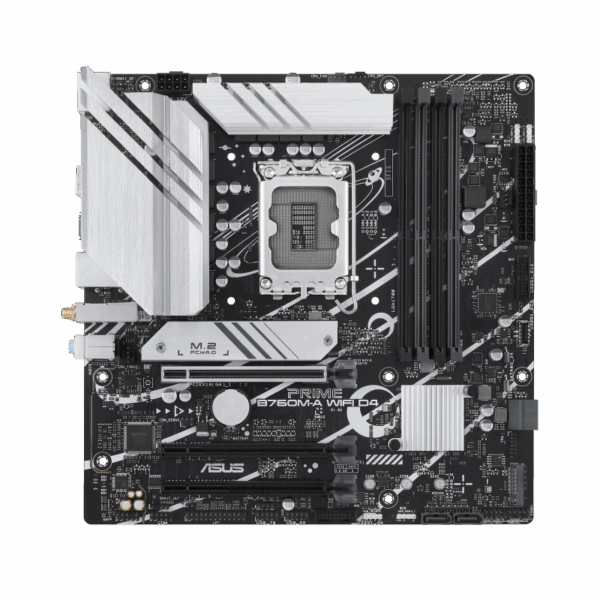

The ASUS PRIME B760M-A WiFi D4 (also known as PRIME B760M-A D4) is a micro-ATX motherboard built for the LGA1700 socket, supporting 12th, 13th, and 14th Gen Intel Core processors. It features DDR4 memory support, dual M.2 slots, and onboard Wi-Fi 6, cinching a versatile and durable platform for mainstream builds.
Key Features
-
Built-in Wi-Fi 6 and Bluetooth 5.2 for flexible wireless connectivity.
-
2.5 Gb Ethernet for robust wired networking performance.
-
Dual M.2 slots and PCIe 4.0 support for fast storage and expansion.
| Specifications | |
|---|---|
| Socket / Chipset | LGA1700 / Intel B760 |
| Memory | 4 × DDR4 DIMM, up to 128 GB, DDR4-5333 (OC) |
| Expansion Slots | 1 × PCIe 4.0 x16, plus 2 × PCIe 4.0 x16 (x4 / x1) |
| Storage | 2 × M.2 (PCIe 4.0 x4), 4 × SATA 6Gb/s |
| Networking | Wi-Fi 6 (2×2) + Bluetooth 5.2, Realtek 2.5 Gb LAN |
| USB Ports | Rear: 2 × USB 3.2 Gen2, 4 × USB 2.0; Front headers: USB-C, USB-A, additional USB 2.0 headers |
| Display Outputs | 1 × DisplayPort, 2 × HDMI, PS/2 combo |
| Audio | Realtek 7.1 HD audio codec |
| Cooling | VRM & M.2 heatsinks, hybrid fan headers, Fan Xpert 2+ |
| Protection & DIY Features | 5X Protection III (DIGI+ VRM, SafeSlot Core+, etc.), Q-DIMM, Q-LED, Q-Slot |
| RGB Support | Aura Sync headers (RGB & ARGB) |
