Description

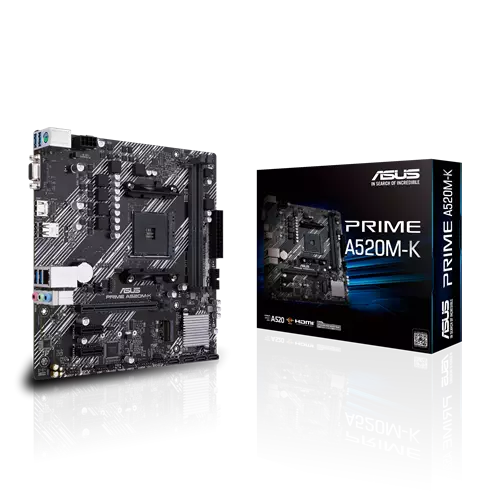

A compact and reliable micro‑ATX motherboard built on the AMD A520 chipset. It offers essential features like M.2 support, Gigabit Ethernet, HDMI output, plus ASUS-exclusive 5X Protection III—ideal for entry-level Ryzen-based builds and silent daily usage.
Key Features
-
Supports AMD Ryzen™ 3000 / 4000 G / 5000 Series processors via AMD AM4 socket
-
Comes with 5X Protection III featuring SafeSlot Core, LANGuard, Digi+ VRM, Over-voltage protection, and stainless-steel I/O shield
-
Fan Xpert cooling controls plus PCH heatsink for maintaining low thermals under load
-
Ultra-fast connectivity with M.2 PCIe 3.0 x4 slot, 4x SATA 6Gb/s ports, USB 3.2 Gen 1, and HDMI/D-Sub video outputs
-
Realtek RTL8111H Gigabit LAN with LANGuard reliable networking
| ASUS Prime A520M‑K Specifications | |
|---|---|
| CPU Support | AMD AM4 Socket: Ryzen 3000 / 4000 G / 5000 Series Processors |
| Chipset | AMD A520 |
| Memory | 2× DDR4 DIMM slots, up to 64 GB, up to 4866 MHz (OC) |
| Expansion Slots | 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 |
| Storage | 1× M.2 (PCIe 3.0 x4 & SATA), 4× SATA 6Gb/s (RAID 0/1/10) |
| Video Outputs | 1× HDMI 2.1 (4K@60Hz), 1× D-Sub (VGA) |
| USB Ports | Rear: 4× USB 3.2 Gen 1, 2× USB 2.0 Front: 2× USB 3.2 Gen 1, 4× USB 2.0 |
| LAN | Realtek RTL8111H Gigabit Ethernet with ASUS LANGuard |
| Audio | Realtek ALC887/897 7.1 Surround Codec, HD Audio |
| Cooling Features | PCH heatsink, Fan Xpert control, multiple fan headers |
| Form Factor | Micro‑ATX (22.6 × 22.1 cm) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS with EZ Flash, CrashFree BIOS 3 |
